That faint shudder at 80 km/h, the buzz through the seat base, or the vibration that shows up only under load on a hill - that is usually where the trouble starts. If you are wondering how to spot driveline vibration in a 4WD, the key is not just noticing that it shakes. It is noticing when it happens, where you feel it, and what changed before it started.
On a touring or work 4WD, driveline vibration is easy to misread. Plenty of owners blame tyres, suspension, or wheel balance first, and sometimes that is fair enough. But when the issue sits in the tailshaft, uni joints, centre bearing, pinion angle, slip joint, diff or gearbox output, the vehicle often gives a different set of clues. Catching those clues early can save you from bigger repairs, especially if the vehicle is loaded, lifted, towing, or doing regular dirt-road kilometres.
What driveline vibration actually feels like
A driveline vibration usually feels mechanical rather than random. It often comes in at a certain road speed, engine load, or driveline angle. That means it may be smooth at 60 km/h, rough at 85 km/h, then less noticeable again at 100 km/h. It can also show up only when accelerating, only when backing off, or only when four-wheel drive is engaged.
That pattern matters. Tyre-related vibration tends to follow wheel speed and often feels more constant once it appears. Driveline issues are more likely to change with torque, suspension movement, or the position of the tailshaft and diff under load. In a lifted 4WD, especially one carrying drawers, tools, a canopy or long-range tank, those changes can become more obvious.
You may feel it through the seat, the floor, the steering wheel, or even hear it as a low-frequency hum. Where it comes through the vehicle helps narrow it down. A vibration in the steering wheel often points people toward front-end issues, while a vibration through the seat or floor is more commonly associated with the rear driveline. Not always, but often enough to be useful.
How to spot driveline vibration by when it happens
The most practical way to work out how to spot driveline vibration is to pay attention to the exact conditions that trigger it. Workshop diagnosis starts with those details, because they tell you where to look first.
At a certain speed
If the vibration appears at a narrow speed range, say between 75 and 90 km/h, that can point to tailshaft balance, uni joint wear, driveline angle issues, or a centre bearing problem. This is common on 4WDs that have had suspension lifts without correcting the geometry properly.
A speed-specific vibration can still be tyre-related, so it is not enough on its own. But if the wheels have been balanced and the vibration remains, the driveline moves higher up the list.
Under acceleration
If it is worse when you put your foot down, particularly up a hill or when towing, that often suggests the driveline is moving out of alignment under load or a worn component is being stressed. Worn uni joints, excessive backlash, failing mounts, and pinion angle issues can all show up here.
On some vehicles, a vibration under acceleration after a lift is one of the clearest warning signs that the new ride height has changed the tailshaft operating angles beyond what the factory setup tolerates.
On deceleration or overrun
If the vibration changes when you back off the throttle, that can point to backlash, worn joints, diff issues, or movement in the driveline that only shows up when torque reverses. The change from drive to overrun tells you a lot. A good driveline should stay controlled through that transition.
Only in 4WD
If the vibration appears only when four-wheel drive is engaged, the fault may sit in the front tailshaft, transfer case output, CVs, front diff, or front driveline angles. This is worth taking seriously, especially if the vehicle is used off-road where those components are already working harder.
After suspension or driveline modifications
If the problem started straight after a lift, tailshaft replacement, gearbox work, diff work, or a clutch job, do not ignore that timing. A new vibration after major work does not always mean poor workmanship, but it does mean something changed. Angles, clearances, mounting positions and component wear can all become more noticeable once the vehicle setup is altered.
Common signs the vibration is in the driveline
There are a few signs that push the diagnosis away from tyres and toward the driveline.
One is a clunk when selecting drive or reverse, especially if it comes with vibration at speed. Another is a chirp or squeak from a uni joint at low speed before the vibration becomes obvious. You may also notice a shudder when taking off from a stop, a thump during gear changes, or a vibration that gets worse with a trailer on the back.
Visible signs help too. Rust dust around a uni joint cap, split rubber around a centre bearing, grease thrown around the underbody, or polished marks where a tailshaft has been contacting something it should not - those are all worth investigating. So is any fresh oil leak around the transfer case, gearbox output or diff pinion where movement may be affecting seals.
Then there is the simple question: has the vehicle’s use changed? A 4WD that was fine unloaded around Perth can start complaining once it is carrying a roof top tent, recovery gear, water, fuel and a family worth of touring gear. Extra weight changes ride height and driveline angle. That is why a setup that feels fine in town can become unpleasant or unreliable on a trip.
What causes driveline vibration in a 4WD
The short answer is wear, angle, balance, or damage. The longer answer is that 4WDs often suffer from more than one of those at the same time.
Worn uni joints are one of the most common causes. As they develop play or bind through their movement, the tailshaft no longer rotates smoothly. A failing centre bearing can do much the same, especially on longer wheelbase vehicles. Bent or poorly balanced tailshafts are another regular culprit, often after off-road knocks or previous repairs.
Lifted suspension is a big one in the 4WD world. Raise the vehicle and you change the relationship between the transfer case, tailshaft and diff. Sometimes the change is minor and acceptable. Sometimes it needs wedges, a spacer, a double cardan shaft, a centre bearing adjustment, or a different approach entirely. It depends on the vehicle platform and how it is used.
Worn engine and gearbox mounts can also let the driveline shift more than it should. That movement can exaggerate existing angle problems. Diff issues, including pinion bearing wear or excessive backlash, can produce vibration too, though they often come with noise as well.
What not to do when you notice it
The worst move is to keep driving and hope it goes away. Driveline vibration rarely fixes itself. More often, it accelerates wear somewhere else. A tired uni joint can damage a tailshaft. A bad angle can chew through components that were otherwise serviceable. In more serious cases, failed driveline parts can leave you stranded or cause major underbody damage.
It is also worth resisting the urge to throw random parts at the problem. Replacing shocks, rotating tyres, or changing suspension bits without a proper diagnosis can waste money fast. If the vibration is load-related or tied to a narrow speed range, guesswork usually misses the real fault.
A sensible way to check it before booking in
You can do a basic owner check without crawling too far into technical territory. Note the speed where it starts, whether it happens under acceleration or deceleration, and whether it changes with load, towing, or four-wheel drive engagement. If the vehicle has recently been lifted, had new tyres fitted, or had driveline work done, write that down too.
Then do a visual look underneath with the vehicle safely parked. Look for leaking seals, damaged tailshaft tubes, missing balance weights, perished centre bearing rubber, or signs of contact around the shaft and crossmembers. If there is any obvious looseness, clunking, or sharp metallic noise, stop there and get it inspected properly.

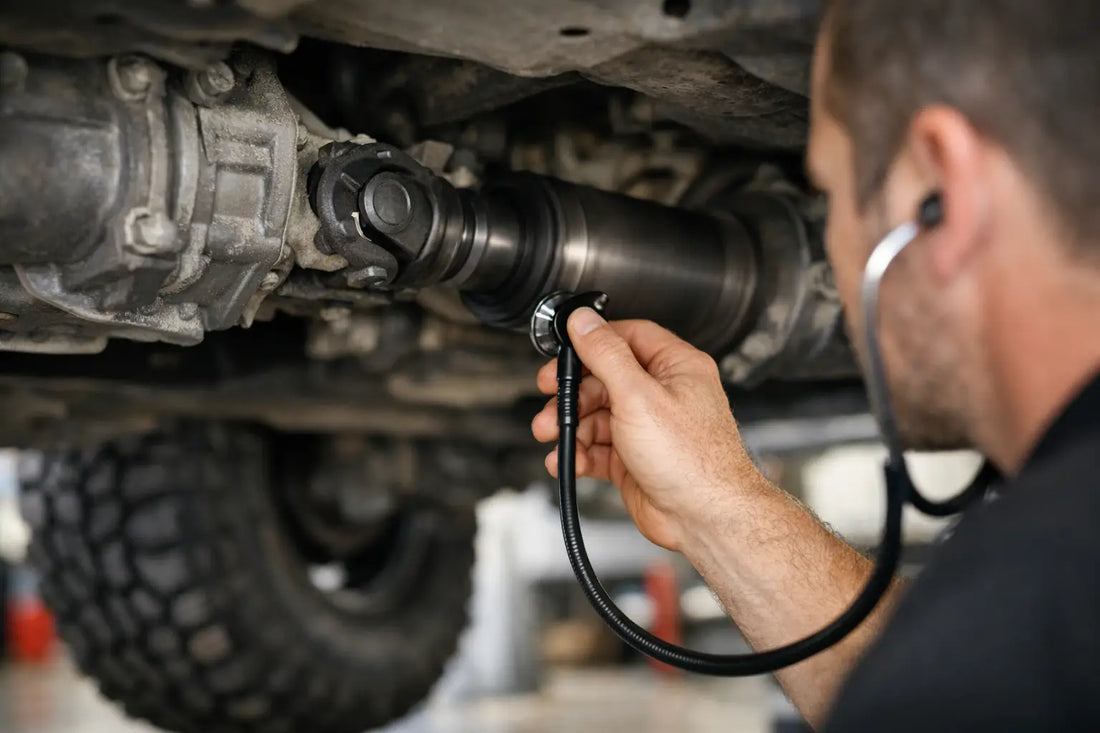

A proper workshop diagnosis goes further. It may involve checking driveline play, measuring operating angles, inspecting uni joints under load, confirming wheel and tyre condition, and road-testing the vehicle under the same conditions that produce the vibration. On specialist 4WDs, that matters. A general mechanical check may find the obvious fault, but modified touring and work vehicles often need someone who understands how suspension height, accessory weight and intended use all interact.
When to get it looked at straight away
If the vibration has suddenly become severe, if there is a clunk or bang underneath, if you can hear grinding, or if the vehicle feels unsafe at speed, do not put it off. The same applies if you are about to head off on a trip. A minor vibration around town can become a major problem once the vehicle is fully loaded and hundreds of kilometres from help.
At Robson Brothers 4WD, this is exactly the sort of issue that is worth checking before it turns into a bigger driveline repair. A good diagnosis is not just about fixing the symptom. It is about making sure the whole setup works properly for the way the vehicle is actually used.
If your 4WD is telling you something through the seat, floor or shifter, listen to it early. The better you can describe the vibration, the faster the right fix usually follows.
